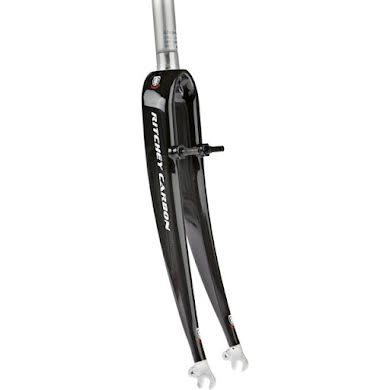

RitcheyCyclocross Comp Carbon 1-1/8 Fork w/Eyelets
We're sorry, this product has been discontinued.
Show Products From Ritchey
Ritchey Comp Cross Forks designed to help you build your ensemble cross bike using affordable parts to pull together a bike that can be raced or dodged through the urban landscape of unpredictable pavement with confidence.
- Aluminum steerer extends into the crown for added strength
- Crown is sized for traditional headsets
Specifications
Axle to Crown
391mm
Brake Type
Cantilever, Linear Pull - Canti
Fork Rake
45mm
Front Axle Type
9x1 - 100mm (Standard Quick Release)
Front Hub Spacing
100mm
Material
Carbon
Steerer Tube
1-1/8" Threadless, Straight
Steerer Tube Length
300mm
Wheel Size
700c
Tree Fort ID:
333222350661
Customer Questions
Q.
asked by: a guest
will this fit my 26" size rim and work with v brakes?
will this fit my 26" size rim and work with v brakes?
A.
anwered by: canteau
The Ritchey fork will work with v-brakes but not with 26" wheels.
The Ritchey fork will work with v-brakes but not with 26" wheels.
Q.
asked by: a guest
Will this fork fit a 2006 trek 5200.
Will this fork fit a 2006 trek 5200.
Q.
asked by: a guest
replacing a carbon steerer with AL, what crown race will I need?
replacing a carbon steerer with AL, what crown race will I need?
A.
anwered by: canteau
The crown race is the same for alloy and carbon steerers so you can re-use the old one unless you are also replacing the headset during the fork swap.
The crown race is the same for alloy and carbon steerers so you can re-use the old one unless you are also replacing the headset during the fork swap.
Q.
asked by: a guest
Will this fork fit an All-City bike frame
Will this fork fit an All-City bike frame
A.
anwered by: canteau
The Ritchey Carbon Comp Cross Fork should work with all of the rim brake compatible All City frames that use cantilever brakes.
The Ritchey Carbon Comp Cross Fork should work with all of the rim brake compatible All City frames that use cantilever brakes.
Q.
asked by: a guest
What is the maximum rider weight?
What is the maximum rider weight?
A.
anwered by: canteau
Ritchey carbon forks have a gear and rider combined weight limit of 242lbs (110kg)
Ritchey carbon forks have a gear and rider combined weight limit of 242lbs (110kg)
Q.
asked by: a guest
What is the rake of the Ritchey Cyclocross Carbon Comp fork?
What is the rake of the Ritchey Cyclocross Carbon Comp fork?
A.
anwered by: canteau
The Ritchey Cyclocross Carbon Comp fork has a rake of 45mm.
The Ritchey Cyclocross Carbon Comp fork has a rake of 45mm.
Q.
asked by: a guest
I think Ritchey makes a 1 inch steerer tube version...? Do you have it?
I think Ritchey makes a 1 inch steerer tube version...? Do you have it?
Q.
asked by: a guest
What is the crown diameter?
What is the crown diameter?
Q.
asked by: a guest
Can I use a star nut or do I use a compression nut?
Can I use a star nut or do I use a compression nut?
A.
anwered by: mlewis
This fork uses an aluminum steerer so a star nut is just fine.
This fork uses an aluminum steerer so a star nut is just fine.
Q.
asked by: a guest
What is the steerer tube length?
What is the steerer tube length?
A.
anwered by: mlewis
300mm. Thanks!
300mm. Thanks!
Q.
asked by: a guest
how much abuse can it take. Hard landings?
how much abuse can it take. Hard landings?
Q.
asked by: a guest
What is the max size width 700c tire that will fit?
What is the max size width 700c tire that will fit?
A.
anwered by: a guest
I've put surly Knard 41c with plenty of clearance.
I've put surly Knard 41c with plenty of clearance.
A.
anwered by: canteau
700x35c depending on the rim width.
700x35c depending on the rim width.
Q.
asked by: a guest
What is the axle to crown measurement? And if you know the max tire size that fits?
What is the axle to crown measurement? And if you know the max tire size that fits?
A.
anwered by: jkaufman
The Axle to Crown Length is 392mm and this fork fits 700c tires.
The Axle to Crown Length is 392mm and this fork fits 700c tires.
Q.
asked by: a guest
What's the gram count?
What's the gram count?
A.
anwered by: canteau
The Ritchey Cross Comp Carbon Cyclocross Fork list weight is 650g, but weights do vary based on production run and how much steerer tube is cut off.
The Ritchey Cross Comp Carbon Cyclocross Fork list weight is 650g, but weights do vary based on production run and how much steerer tube is cut off.
